Standard Duty P6S Gearbox with a 45:1 reduction. Configured with a 1-1/2in long x 1/2 round output shaft, stock square front block, tumbled 2024 aluminum ringgear, and a selectable input bundle.
This gearbox is manufactured by Zebra Gearbox and is a drop in replacement for the BaneBots P61S-433. This is a standard configuration from the Zebra P6 line, for more options and built to order configurations please visit ZebraGB.com.
All motor input selections include a motor block, pinion, and hardware (screws/washers) to mount the selected motor. Machinable selections include a motor block and a pinion ready to machine to a custom motor. Additional Motor HW Kits and Pinions may be purchased separately. Links to items that will work with gearbox can be found in the Specifications tab.
-- RS-3nn Motor --
Motors with a 2.3mm shaft and a 10mm boss.
Motors with this configuration include RS-380, RS-385, RS-390, and RS-395 motors.
Gearboxes with a first stage of 3:1 are not supported for RS-300 motors due to the pinion size.
The 4:1 pinion is larger than the boss on the front of a RS-3nn motor. When using a 4:1 pinion, the motor must be installed to the block before the pinion is pressed on.
-- RS-5nn Motor --
Motors with a 3.2mm shaft and a 13mm boss.
Motors with this configuration include RS-540, RS-545, RS-550, and RS-550 motors.
-- RS-5nn or 7nn Motor --
Motor with either a 3.2mm or 5mm shaft and either a 13mm, 15mm or 17.5mm boss. Motors with this configuration include RS-540, RS-545, RS-550, RS-555, RS-775, and RS-775 motors. This configuration provides flexibility in selecting the motor to mount to the gearbox by providing a solution to mount either an RS-5nn motor or an RS-7nn motor. This option also includes bushings to support 13mm and 15mm front boss sizes.
-- RS-7nn Motor --
Motors with a 5mm shaft and a 17.5mm boss.
Motors with this configuration include RS-755, and RS-775 motors.
Some RS-775 motors are manufactured with a 15mm boss on the front; these motors can still be used but will require the motor be manually centered in the motor block. Alternatively, "RS-5nn or 7nn Motor" selection can be used as they provide bushings for the smaller boss.
Gearboxes with a first stage of 5:1 are not supported for RS-700 motors due to the small pinion size.
-- Machinable Motor Block and Pinion --
Machinable motor block with side mounting holes.
Machinable pinion ready to bore to required size.
SOME ASSEMBLY REQUIRED
Gearbox will be delivered assembled and tested; however, it will need to be disassembled to grease and mount the motor prior to use. No special tools are required, typically only an allen wrench.
GEARBOX MUST BE GREASED
Prior to use the gearbox must be greased, grease IS NOT INCLUDED and must be purchased separately. We recommend Mobil XHP 222 Special grease; however, most lithium based ball bearing grease can be used. We do not sell grease separately, it can be readily purchased from most local auto parts stores or online suppliers such as MSC, Grainger, and McMaster among others. Configurable and Custom gearboxes can be supplied greased.
MAXIMUM TORQUE RECOMMENDATION
Please reference the maximum torque for the gearbox in the Specifications Tab. The torque given is the FAILURE torque measured at the OUTPUT shaft from destructive bench testing. The torque driven into the gearbox, the gearbox reduction, and an appropriate safety margin should be considered when evaluating the torque in a given system.
- Reduction (Actual):
- 45:1 (45.39:1)
- Height/Width (Square):
- 1.5 in
- Fits In Diameter:
- 2 in
- 2.30 in +Shaft +Input
- 8.0 oz +Input
- Max Torque:
- 60 ft-lbs
- Planet/Sun Gear Material:
- Cold Rolled Steel
- Gear Specs:
- 0.6mod, 20deg PA
- 3 - 4:1, 3:1, 3:1
- Mounting Holes:
- Eight Total: #10-32 Thread
- 1/2in x 1-1/2in
#10-32 end tap
- First Stage:
- Motor HW Kits:
- P6 4:1 Motor HW Kits
- P6 4:1 Pinions

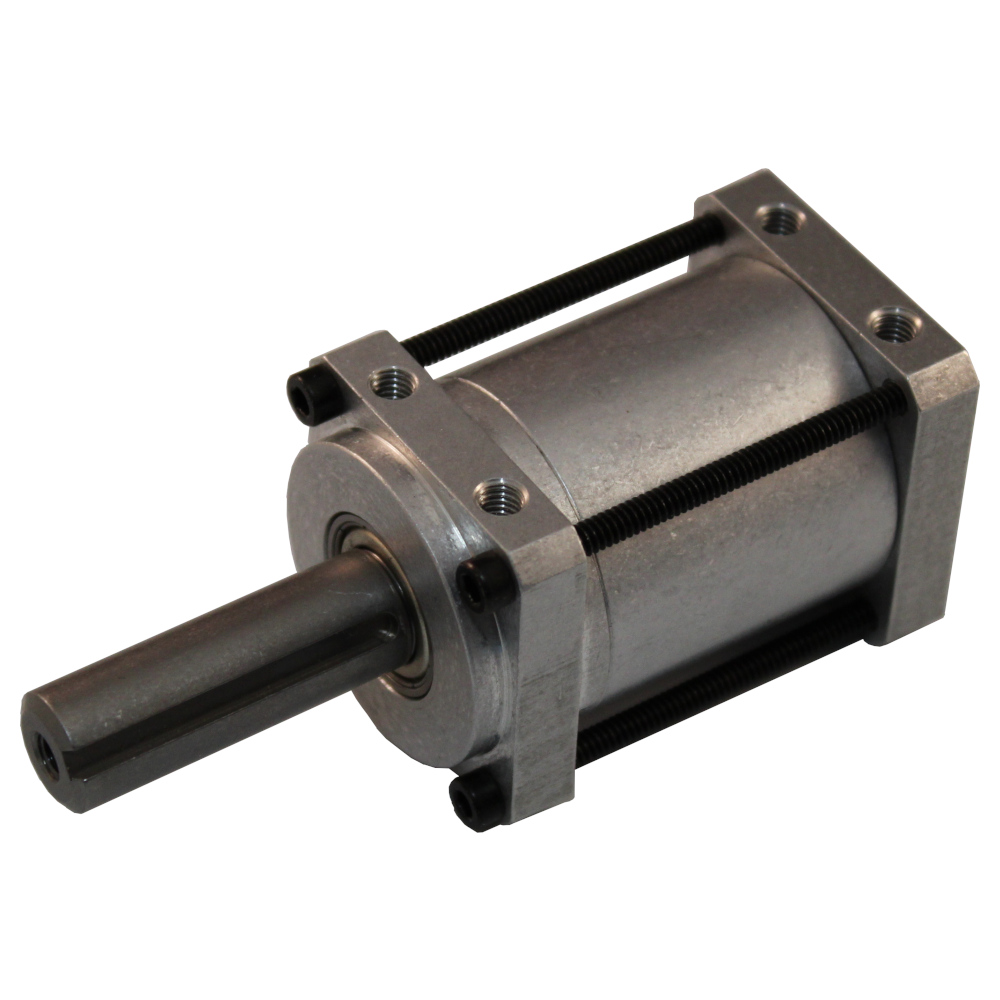

Model shows Configurable configuration with a Machinable Motor Block - 0.3in Thick
